Moments in the making of The Colours of Rome.

Click on the image to move on to the next.

Skeleton time

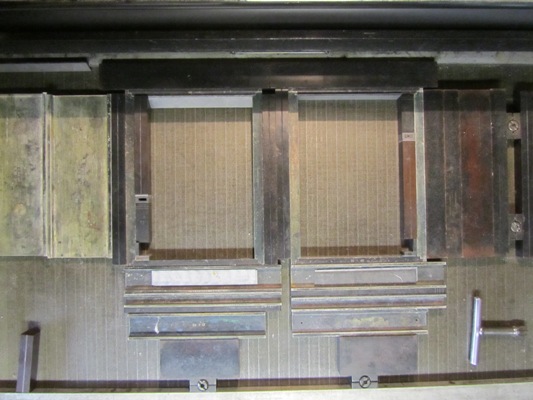

The bed of my proof press would take four pages of this size but I shall be printing just two pages at a time. The task now is to construct the skeleton for the forme. I arrange suitable furniture around the text blocks so that the pages are the correct distance apart and an appropriate distance from the head of the page. I have a large set of metal components that allow me to build mini-chases, in this case a pair 36em wide and a little over thirty-four lines deep. I place other furniture around these so that they are sitting centrally across the bed. The rollers will be running down the page of lines – not ideal but if my rollers are adjusted to the correct running-height all should be well.
The measure is in fact 32em but there is a 4em outer margin on each page into which the page number will drop - you can see the gaps for them in the lower outer corner of each mini-chase.
